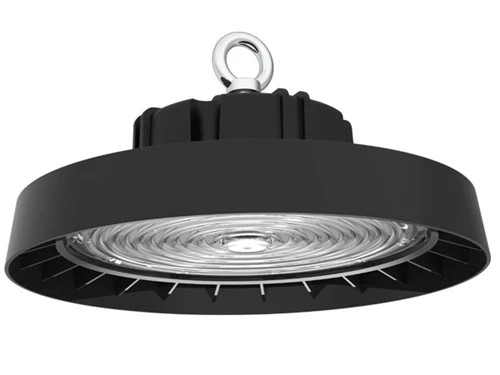

![[[smallImgAlt]]](/uploads/202322347/nsf-food-industry-ufo-high-baye82d51b1-66e6-4ae4-b29a-c0f6d385675f.png)
Nta:
>ADC12 Die-castign Al, zoo heev thermal conductivity;
>High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Tsav Tsheb Xaiv;
>IP66, IP69K Kev Tiv Thaiv, IK10 Impact Resistant;
>60 degree / 90 degree (nrog lens) / 120 degree (tsis muaj lens) beam kaum sab xis xaiv;
>Corrosive Resistant Powder Coated Finish;
>Ntau yam kev teeb tsa: Loop Hanging, Qab nthab Mounting;
>Ntau yam kev txawj ntse tswj: 1-10V, DALI, Motion sensor, Hnub ci sensor, Zigbee thiab xwm ceev;
>PC npog: Muaj kev nyab xeeb rau kev ua zaub mov
>Tsis muaj UV lossis IR thiab tsis muaj mercury kiag li;
> L70/B20 @ 70.000h;
>Customized txhawb rau tej yaam num tshwj xeeb;
Kev xaiv:
>Tsav Tsheb: Meanwell ELG / HLG (Retangle), Sosen (Retangle)
>Tswj thiab Dimming: Zigbee wireless tswj / 1-10V Dimming / Motion sensor / Emergency / DALI tswj / Hnub ci sensor.
>Reflector: PC reflector nrog / tsis muaj cover.pipe mounting.
>Installation: voj dai;
>Customized txhawb rau tej yaam num tshwj xeeb.
>Khoom noj khoom haus Processing Factory, Farm, Supermarket
>Factories / Warehouses / Workshops
>Exhibition & showrooms
>Barns thiab caij halls
>Cov chav siab thiab chav tsev
>Tsob ntoo hloov
| Qauv No. | DR-HB100-GGXP | DR-HB150-GGXP | DR-HB200-GGXP |
| Qhov System Watts / W | 100W | 150W | 200W |
| System Efficiency/LPW | 140 LWB | ||
| Lumen tso zis / lm | 14.000±5% | 21.000 ±5% | 28.000±5% |
| Rated Input Voltage / V | AC100 ~ 277V, 50/60Hz | ||
| LEDs Lub Teeb Source | SMD 3030 | ||
| SDCM | <5 | ||
| CCT/K | 5000K rau Standard (3000K / 4000K / 5700K / 6500K Yeem) | ||
| CRI/Ra | >70Ra (>80Ra rau kev xaiv) | ||
| Hwj chim Factor | >0.95 | ||
| THD | <10% | ||
| Beam Angle (yeem) | 60 degree / 90 degree / 110 degree yeem | ||
| UGR | <25 | ||
| Kev tiv thaiv Surge | 6 ~ 10KV SPD ua hauv Tsav Tsheb, Sab Nrauv SPD 20KV Meanwell yeem | ||
| LED tsav tsheb | Meanwell HBG/ELG/HLG, Sosen | ||
| Kev ntsuas IP | IP66 | ||
| Dimming (yeem) | 0/1-10V/DALI/Zigbee | ||
| Sensor (yeem) | Motion Sensor, Hnub ci Sensor | ||
| Kev kub ntxhov (yeem) | Muaj (30W @ 3Hrs rau Standard) | ||
| Chav kawm tiv thaiv | Chav kawm Ⅰ | ||
| Xim tiav (yeem) | Dub RAL9017 (Standard) / Dawb RAL9016 Yeem | ||
| Khoom siv | Aluminium + PC (Toughened iav npog xaiv tau) | ||
| Lifespan / teev | 60.000 Hrs (Ta=30 degree @L70) | ||
| Ua haujlwm Temp / degree | -40 degree rau + 50 degree (-40 degree F txog 122 degree F) | ||
| Cia Temp / degree | - 40 degree rau + 65 degree (-40 degree F txog 149 degree F) | ||
| Installation (yeem) | Loop Hanging | ||
| Daim ntawv pov thawj | NSF, CE (EMC + LVD), RoHS, ENEC, D-Mark, SAA, RCM Muaj | ||
| Cwj pwm / hwj chim | 100W | 150W | 200W |  |
| A | φ400 hli | φ400 hli | φ400 hli | |
| B | 182mm ib | 182mm ib | 182mm ib |
INSTALLATION GUIDE
COV NTAUB NTAWV TSEEM CEEB:
Thov nyeem tag nrho cov lus qhia hauv qab no ua ntej kev teeb tsa
>Nco ntsoov tias cov khoom siv hluav taws xob sib raug rau cov khoom ntsuas hluav taws xob;
>Cov khoom lag luam yuav tsum tau teeb tsa los ntawm tus kws tshaj lij hluav taws xob tsim nyog raws li National Electrical Code thiab cov cai hauv zos.
>Yog tias cov khoom puas lawm, tsis txhob siv nws!
TSEEM CEEB TSHAJ PLAWS - NYEEM thiab ua raws li tag nrho cov lus ceeb toom thiab cov lus qhia kev teeb tsa.
Khaws los yog muab rau tus tswv rau yav tom ntej siv.
Risk ntawm kev txiav:Hnav hnab looj tes tiv thaiv kev txiav los yog abrasions thaum tshem tawm ntawm lub thawv, tuav, txhim kho, thiab tswj cov khoom no.
Risk ntawm hluav taws xob shock:Cov khoom no yuav tsum tau muab tso rau hauv raws li txoj cai kev teeb tsa los ntawm ib tus neeg paub txog kev tsim kho thiab kev ua haujlwm ntawm cov khoom thiab cov kev phom sij cuam tshuam.
Risk ntawm Hluav Taws:Yam tsawg kawg 194 degree F muab cov khoom siv hluav taws xob. Nrog rau tus kws tshaj lij hluav taws xob tsim nyog kom paub meej tias cov ceg hluav taws xob raug cai.
DUALRAYS® xav tias tsis muaj lub luag haujlwm rau cov lus thov uas tshwm sim los ntawm kev teeb tsa tsis raug lossis tsis saib xyuas lossis tuav cov khoom no.
DALI Device
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
| Qauv No. | Net Nyhav / Kg | Ntim Cov Thawv Loj / hli | Qhov hnyav tag nrho / Kg | QTY"/CTN |
| DR-HB100-GGXP | 8.1 | 410*410*160 | 8.8 | 1PCS / CTN |
| DR-HB150-GGXP | 8.4 | 410*410*160 | 9.2 | 1PCS / CTN |
| DR-HB200-GGXP | 8.9 | 410*410*160 | 9.7 | 1PCS / CTN |
